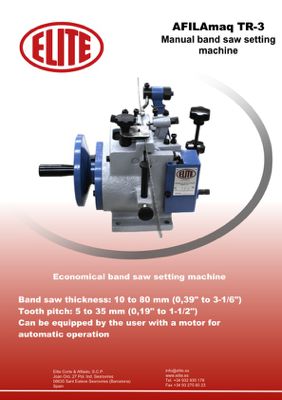

DOWNLOADS
SPECIFICATIONS
VIDEOS

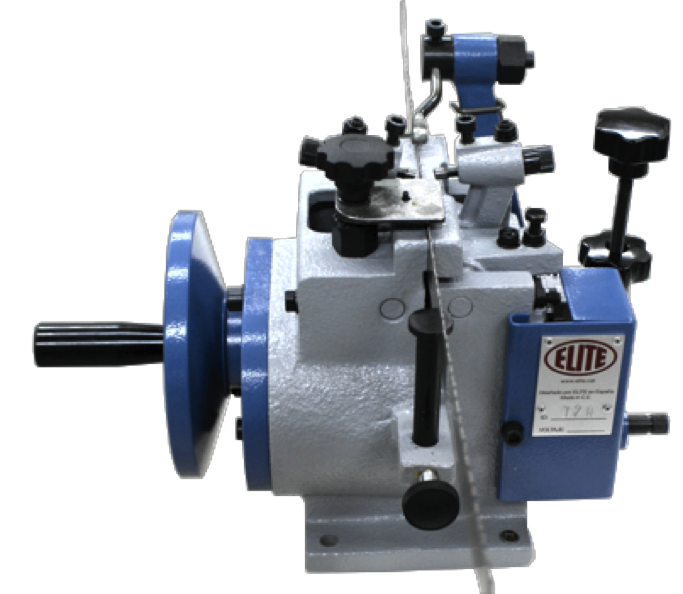

Manual band saw setting machine
For band saw blades for carpentry from 10 to 80 mm. (0,39” a 3-1/6”)
A motor can be optionally coupled for automation
The ELITE TR-3 is our economical, durable and low-maintenance setting machine.
For band saws with a width of 10 to 80 mm.
Can be equipped by the user with a motor for automatic operation
| Band saw width | from 10 to 80 mm. (0,39" to 3 1/6") |
|---|---|
| Band saw thickness | from 0,5 to 1,2 mm (0,02" to 0,047") |
| Tooth pitch | from 5 to 35 mm (0,19" to 1,37) |
Technical data
Optional accesories
- Can be equipped by the user with a motor for automatic operation
Available versions
| Model | Packing size | Packing weight |
|---|---|---|
| TR 3 | 400 x 600 x 700 mm | 13 Kg |
HIGHLIGHTS
- Sturdy construction and long life machine
- Low maintenance
- Easy to use: suitable for both professional to beginners workshop operators
- Left/Right or Left/Right/Straight tooth setting of the band saws.
- Can be equipped by the user with a motor for automatic operation

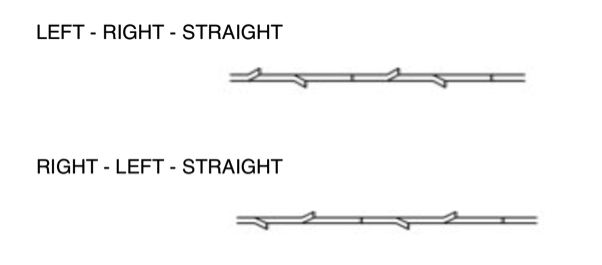

SETTING TYPE
WORKING PRINCIPLE
