Our largest welding machine for welding carbon steel and occasional bimetal band saws.
Incorporates electronic control of the welding and annealing current.

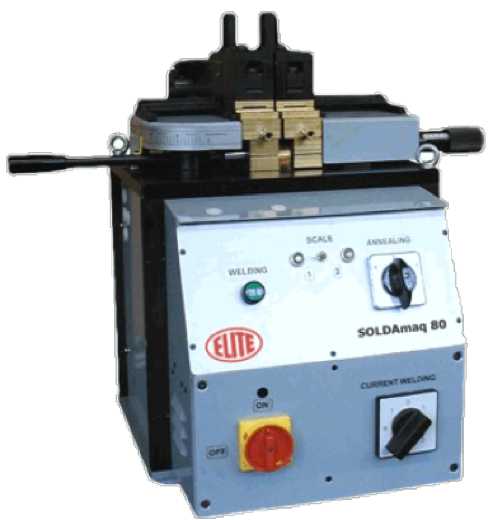

The SOLDAmaq 80 is our largest welder with the resistance welding system. Both ends of the saw are melted together while being pressed together. This is the best system for steel.
“Push and play" band saw welding: simply follow the welding parameters we provide you, depending on the thickness and width of the saw, close the clamping jaws and press the welding button.
Allows both welding and tempering of the weld to be carried out in a single clamping operation and without the addition of any additional material or flux.

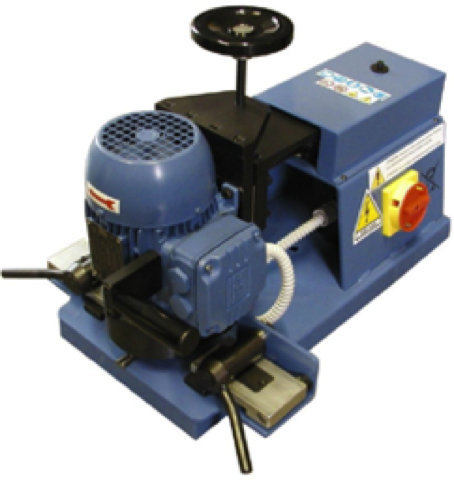

For the elimination of burr, you can optionally purchase the SOLDAmaq EC.
Can be optionally equipped with SOLDAmaq EC deburring machine, for removal of the weld seam
| Steel bandsaw width | from 20 to 80 mm (0,78" a 3,15") |
|---|---|
| Bandsaw thickness | from 0,6 to 1,2 mm (0,023" to 0,063") |
| Installed power | 8 kW |
Technical data
Available versions
| Model | Packing size | Weight |
|---|---|---|
| SOLDAmaq 80 | 980 x 760 x 960 mm | 200 Kg. |
HIGHLIGHTS
- Greater sensitivity in the welding and annealing of thin bands of the stainless steel and bimetal band saw, without additional flux and in a few seconds
- Electronic current control
- Electronic annealing current
